 | FMCM | FPGA-based electronics module in charge of calculating the current on the magnet and detecting fast current changes. | Schematics User manual |
 | High-Voltage Box | High-voltage box which contains a voltage divider and an isolation amplifier to adapt and isolate voltage levels coming from the magnets/power converters to the FMCM. | Amplifier sch Divider sch |
 | Carrier board | The TVME200 is a 6U VMEbus Carrier board for up to four single-size or two double-size IndustryPack (IP) modules. In LHC installations it is normally plugged on the BIC-VME crate to provide interface to the CERN control system. | Info |

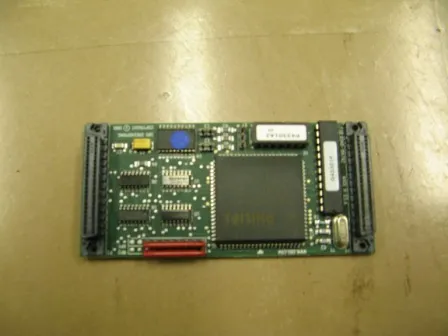

 | RS-422 daughter board | IP-Octal 422 provides eight channels of full-duplex asynchronous serial communications. It is inserted on the TVME200 carrier board to provide serial communication between the FMCM and VME interface. | Info |
 | IP-OCTAL interface | XM-OCTAL is a transition module for IP-Octal 422 that supports two Octal serial modules. The interface is via a 50-pin flat ribbon to DB9 female connector. | Info |
| BIC Interface for FMCM | Module to interface the FMCM to the Beam Interlock Controller. | EDMS 992547 |
